XSlim Series

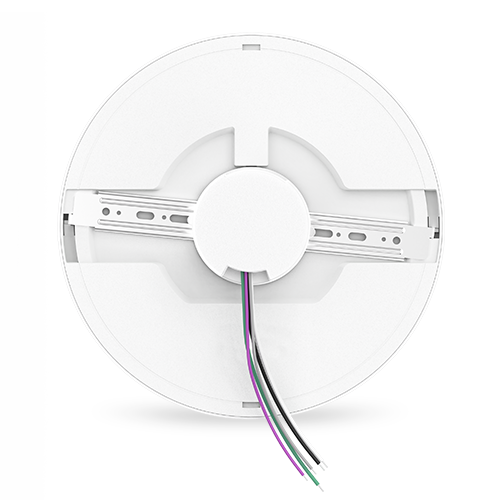

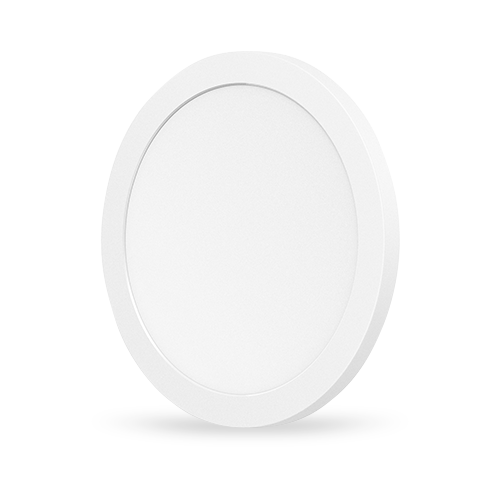

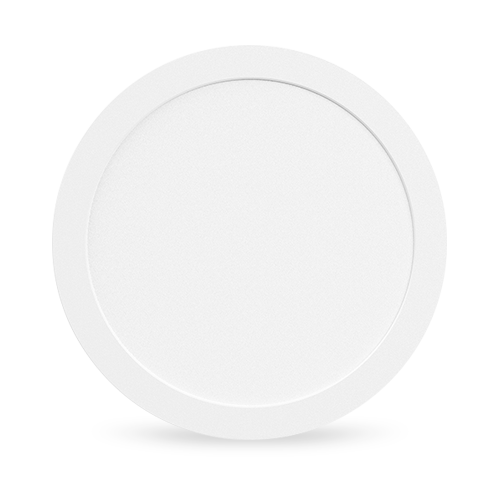

1CCT AC100~277V & 0~10V DIM XSlim LED Round Panel Light
characteristic

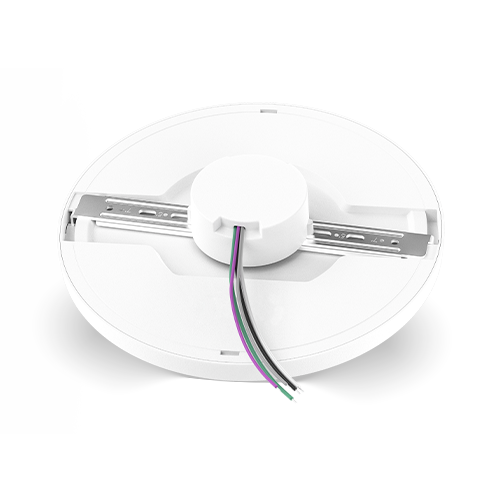

- External Driver for AC100~277V

- 0~10V Dimming at AC100~277V or Triac Dimming at AC120V

- 5%-100% Dimming Capability

Need more information?
For more information on this product, please contact us on +86-755 23170715 or email us on
Product Advantages
5CCT
3 Power
Silicon controlled dimming
AC120V
5 Years Warranty
Damp location
Parameter Display
5 inches
  • Size(in)

    5"

  • Size(mm)

    Φ135*13mm

  • Watt

    8W

  • Lumen

    560lm

  • CRI

    >90

  • 1 CCT

    2700K/3000K/3500K/4000K/5000K

  • Input Voltage

    AC100~277V

  • Dimmable

    Triac/0-10V

  • Finish

    White

7 inches
  • Size(in)

    7"

  • Size(mm)

    Φ180*13mm

  • Watt

    12W

  • Lumen

    960lm

  • CRI

    >90

  • 1 CCT

    2700K/3000K/3500K/4000K/5000K

  • Input Voltage

    AC100~277V

  • Dimmable

    Triac/0-10V

  • Finish

    White

9 inches
  • Size(in)

    9"

  • Size(mm)

    Φ225*13mm

  • Watt

    18W

  • Lumen

    1620lm

  • CRI

    >90

  • 1 CCT

    2700K/3000K/3500K/4000K/5000K

  • Input Voltage

    AC100~277V

  • Dimmable

    Triac/0-10V

  • Finish

    White

12 inches
  • Size(in)

    12"

  • Size(mm)

    Φ300*13mm

  • Watt

    24W

  • Lumen

    2160lm

  • CRI

    >90

  • 1 CCT

    2700K/3000K/3500K/4000K/5000K

  • Input Voltage

    AC100~277V

  • Dimmable

    Triac/0-10V

  • Finish

    White

15 inches
  • Size(in)

    15"

  • Size(mm)

    Φ380*13mm

  • Watt

    36W

  • Lumen

    2700lm

  • CRI

    >90

  • 1 CCT

    2700K/3000K/3500K/4000K/5000K

  • Input Voltage

    AC100~277V

  • Dimmable

    Triac/0-10V

  • Finish

    White
