ODM SERVICES

Mold Manufacturing

Mold Development Process

Using CAE/CAD/CAM/CMM technology, the research and development results cover equipment optimization and tool improvement, process and process optimization,Introduction of new technologies and processes, secondary development of software functions, etc.

1.Customer Design Input

- 3D Drawing

- 2D Drawing

- Material
2.Product Strength Analysis

- Displacement Analysis

- Stress Analysis

- Mold Flow Analysis

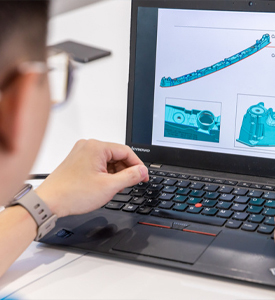

3.Mold DFM Analysis

- Glue Feeding Method

- Parting Surface/Slide Position Mold

- Die pulling/Ejection/Stamping

- Structural Design Changes

- Hot Runner Layout

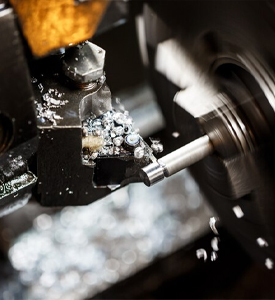

4.Mold processing

- Mold CMM Inspection (Outsourcing)

- Automatic Progress Tracking
5.Mould Certification

- Mould Size Detection

- Product size/CPK

- Molding Conditions

- Product Reliability Testing

process

Mold Development Cycle

Equipment

Production Equipment

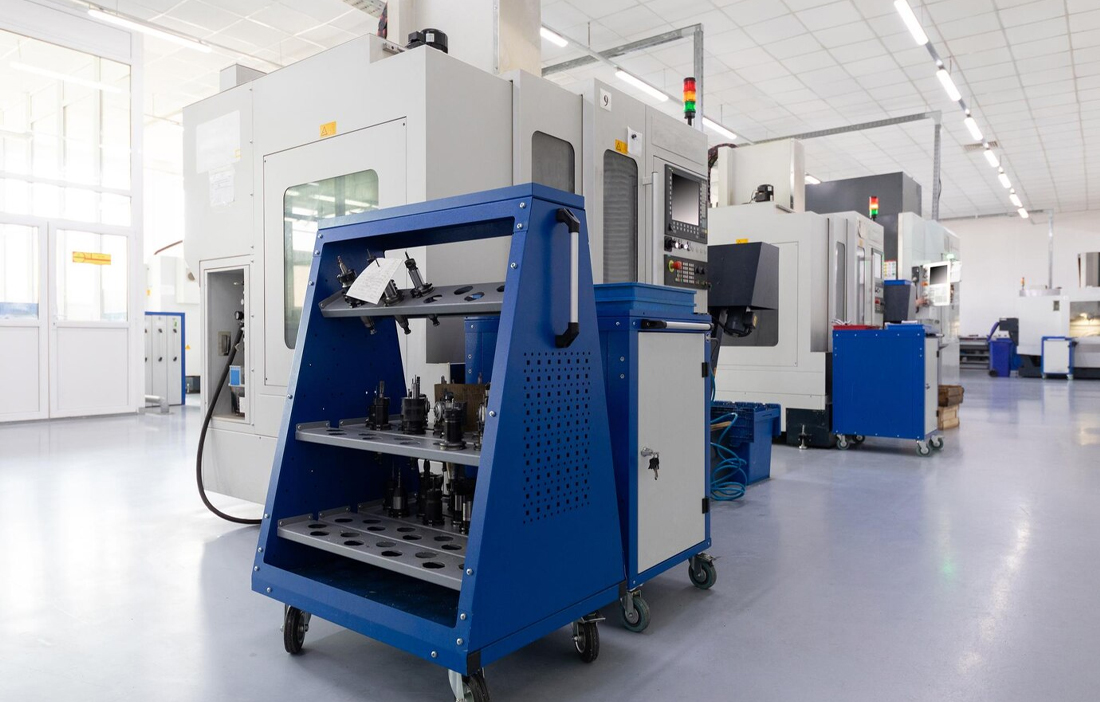

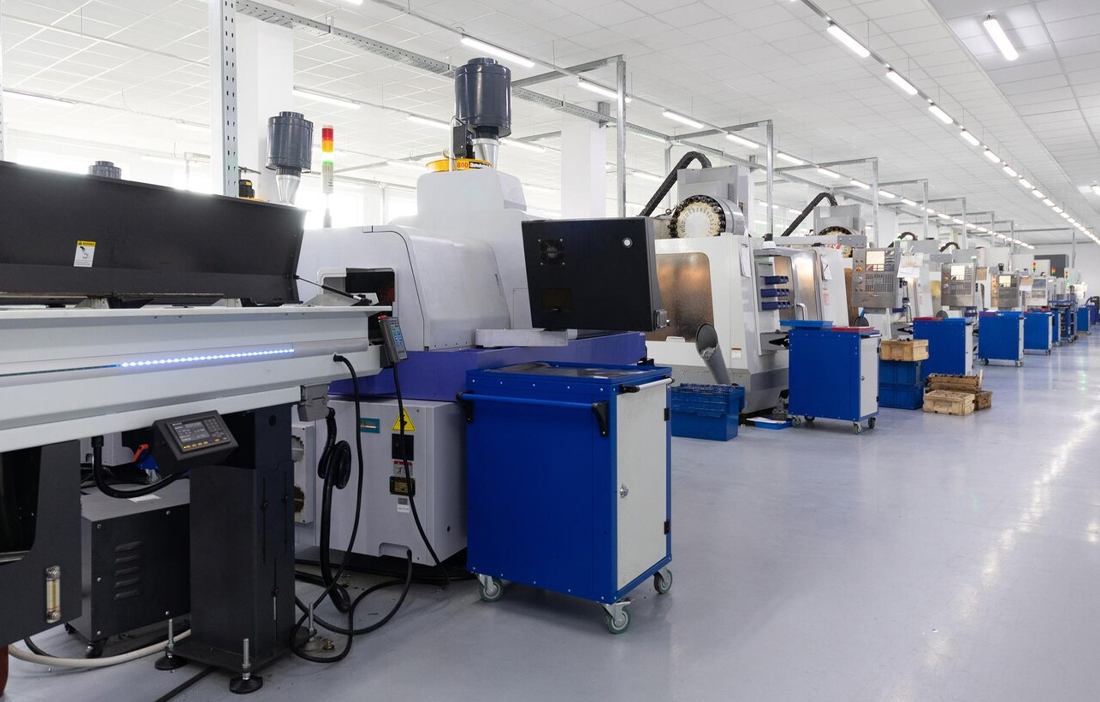

Workshop Production Equipment

Quality Inspection Products

Dongguan Factory Workshop
